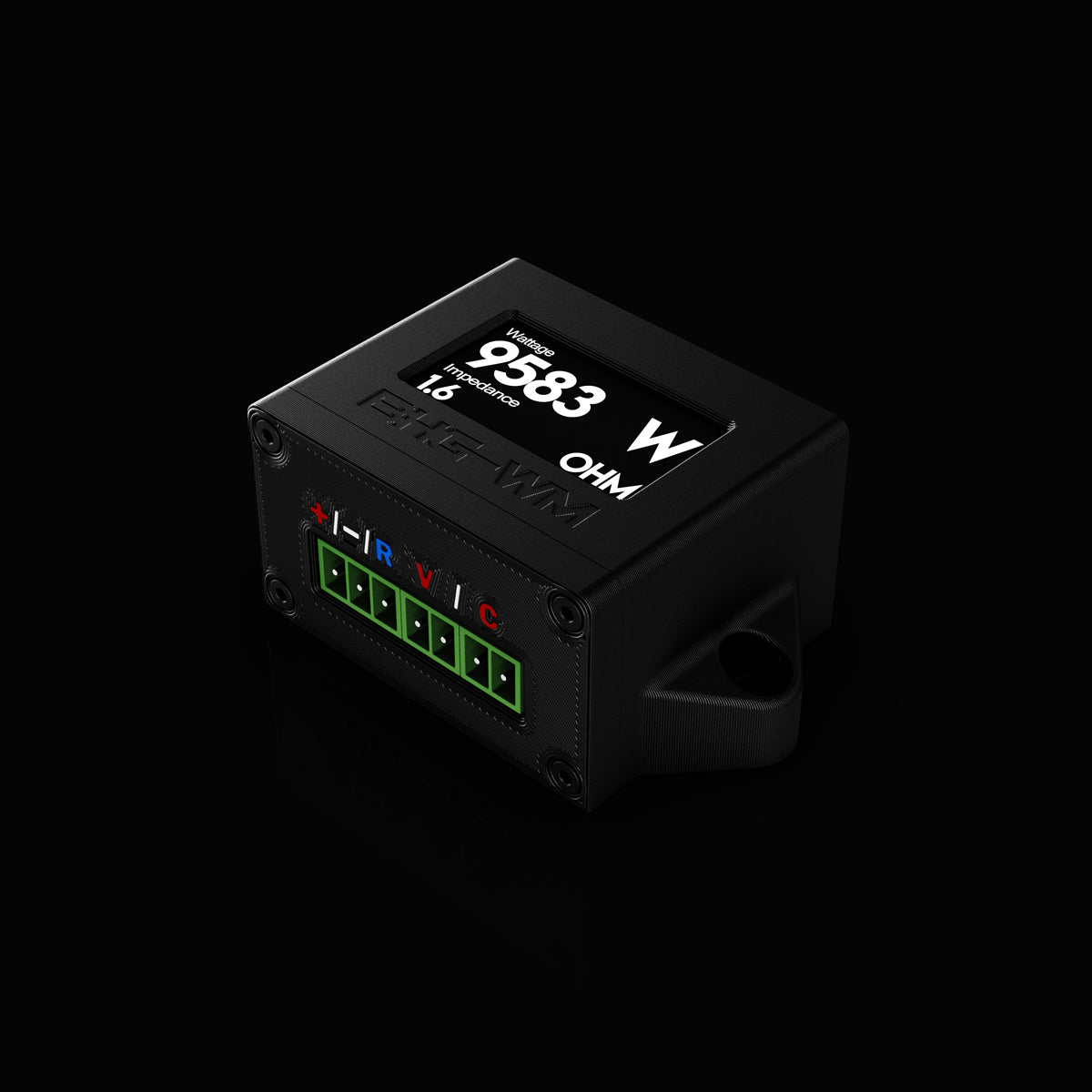

BHG-WM - Wattmeter

BHG-WM - Wattmeter

€129,99 EUR
€129,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Features:
- Measure True Amplifier Power output (W)
- Measure Apparent Power (VA)
- Measure Phase Difference between Voltage and Current into reactive loads (PF)
- Measure AC Volts (V)
- Measure AC Current (A)
- Measure Max Amplifier Output with PEAK mode.

    Package contains:
    1x BHG-WM Wattmeter
    1x 150A Current transformer.
    1x 3.81mm 3-pin connector
    2x 3.81mm 2-pin connector

    Instruction Manual: Download


    View full details

    Specifications:

    AC Voltmeter:  0 - 200 V Rms
    AC Ammeter: 0 - 150 A Rms
    Power Factor:  0.50 - 1.00
    Max Wattage:  20,000+ Watts
    Frequency range:  15 - 100 Hz
    Display: 1.3" OLED Monochrome
    Connectors: 3.81 mm Plug connectors
    Case material: PETG Plastic
    Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"



    Specifications:

    AC Voltmeter:  0 - 200 V Rms
    AC Ammeter: 0 - 150 A Rms
    Power Factor:  0.50 - 1.00
    Max Wattage:  20,000+ Watts
    Frequency range:  15 - 100 Hz
    Display: 1.3" OLED Monochrome
    Connectors: 3.81 mm Plug connectors
    Case material: PETG Plastic
    Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"



    Display modes:

    • Wattage & Impedance

    • Voltage & Current

    • Apparent Power & Power factor

    1 3

    Wiring:

    + Battery Positive
    - Battery Ground
    R - Remote (Head Unit)
    V - Connect to Car Amplifier speaker output + & -
    C - Connect to the Current Transformer that goes around the positive or negative speaker wire.
