BHG-DB - Decibel Meter

BHG-DB - Decibel Meter

€199,99 EUR
€199,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

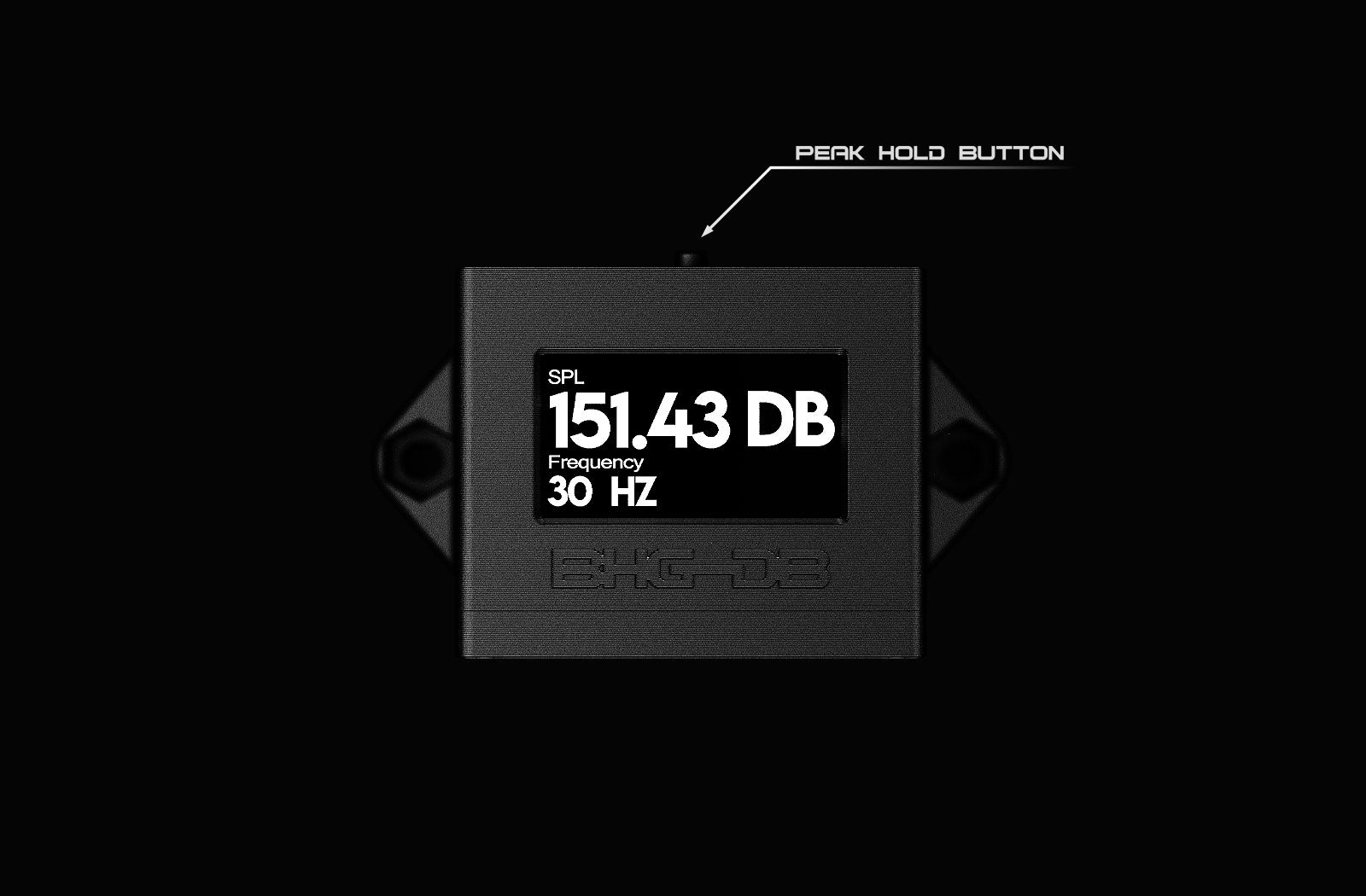

Easily measure low frequency Sound Pressure Levels in your car with BHG-DB - The Ultimate Bass Decibel Meter solution!

 Package contains:
1x BHG-DB Decibel meter
1x 3.81 MM 3-pin connector

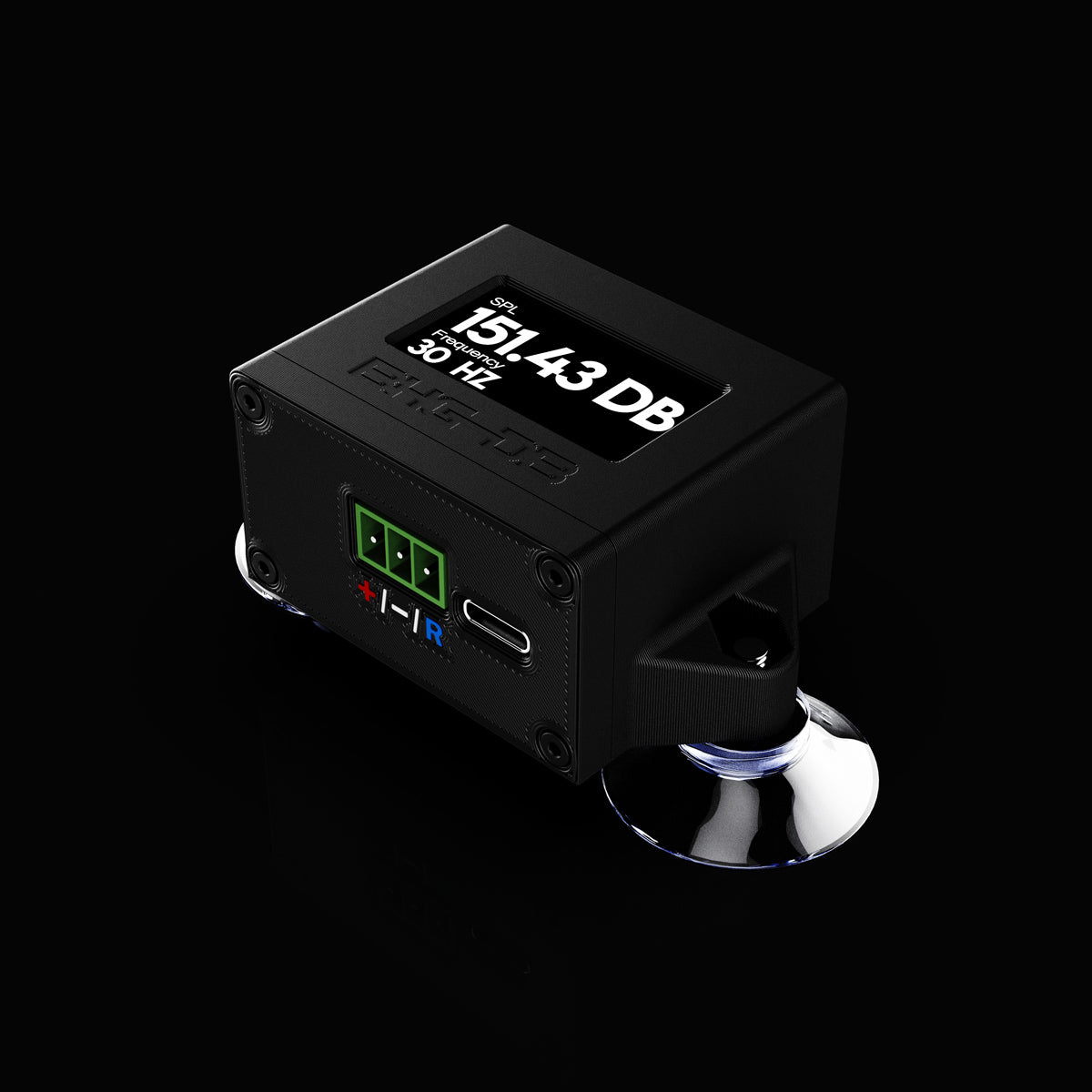

2x 30mm Suction Cup

Instruction Manual: Download


View full details
Amplitude Range:  120 - 180 dB
Frequency Range: 10 - 100 Hz
Input Voltage Range: 9 - 18 V DC
Response Time: 800 M/s
Connector Type: USB-C & 3.81 mm Connector
Display:  1.3" OLED Monochrome
Case Material: PETG Plastic
Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"

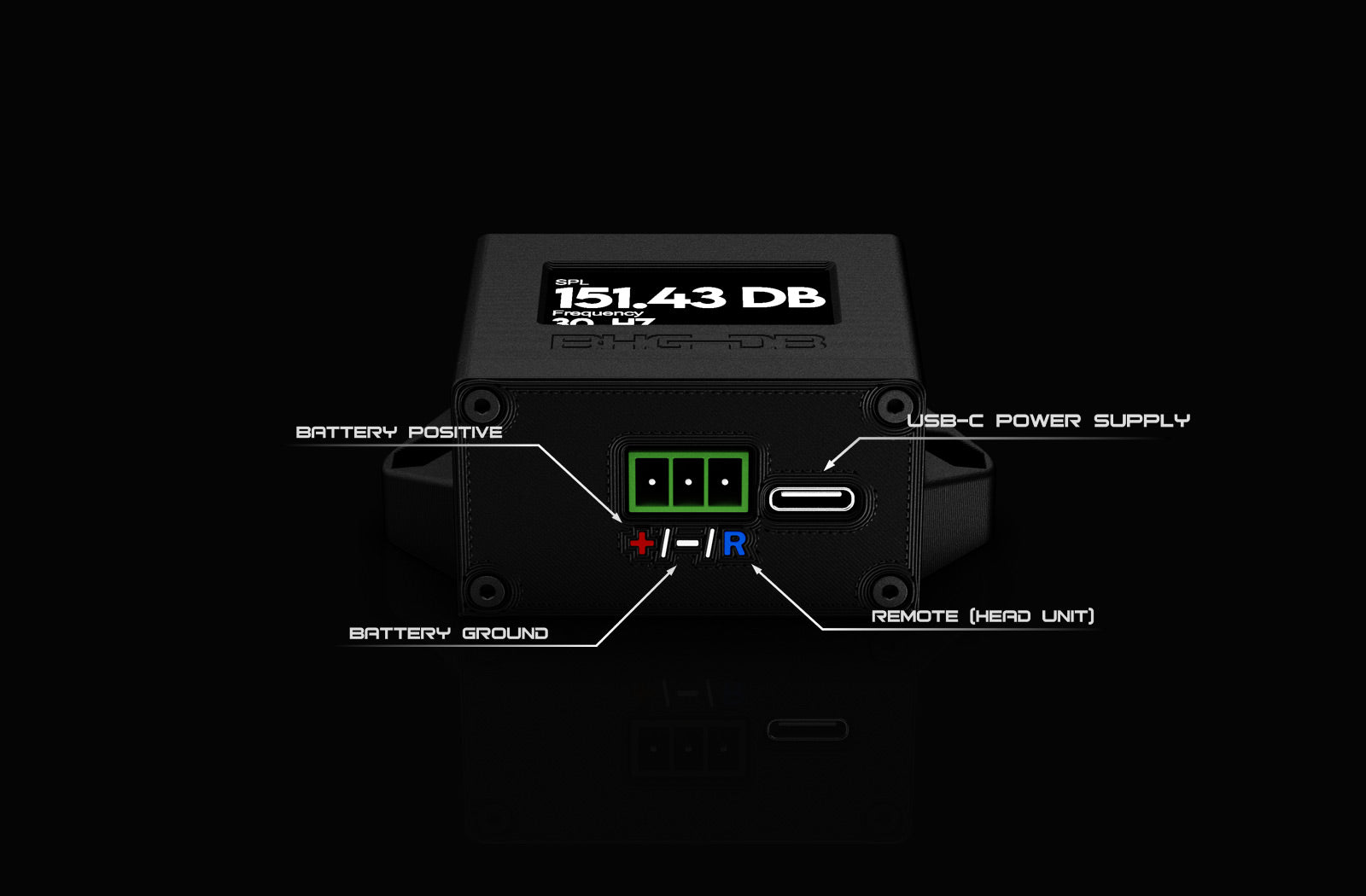

Wiring:

+Battery Positive
- Battery Ground
R - Remote (Head Unit)
USB-C - Alternative Power Supply

Specifications:

Amplitude Range:  120 - 180 dB
Frequency Range: 10 - 100 Hz
Input Voltage Range: 9 - 18 V DC
Response Time: 800 M/s
Connector Type: USB-C & 3.81 mm Connector
Display:  1.3" OLED Monochrome
Case Material: PETG Plastic
Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"

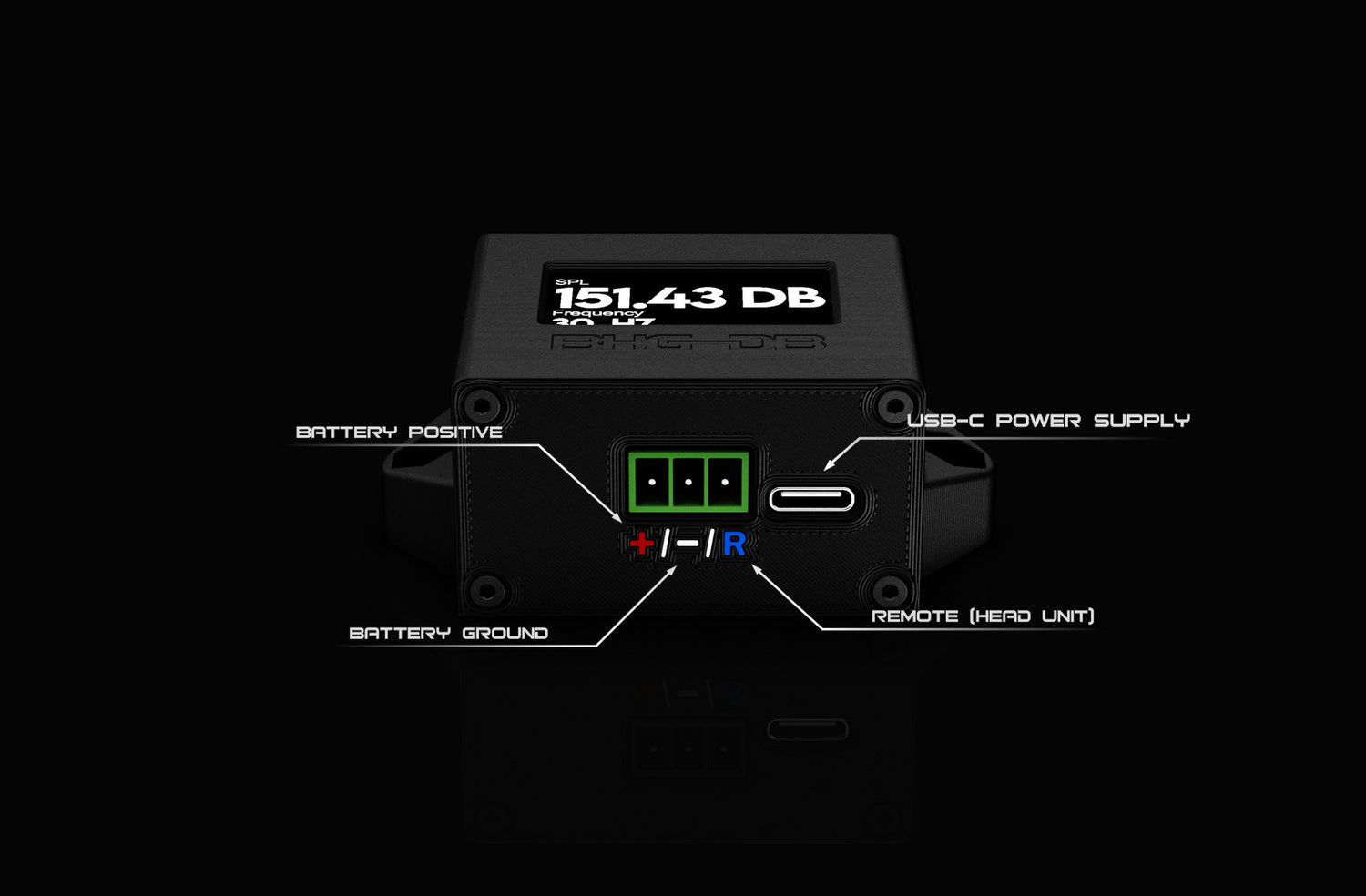

Wiring:

+ Battery Positive
- Battery Ground
R - Remote (Head Unit)
USB-C - Alternative Power Supply
