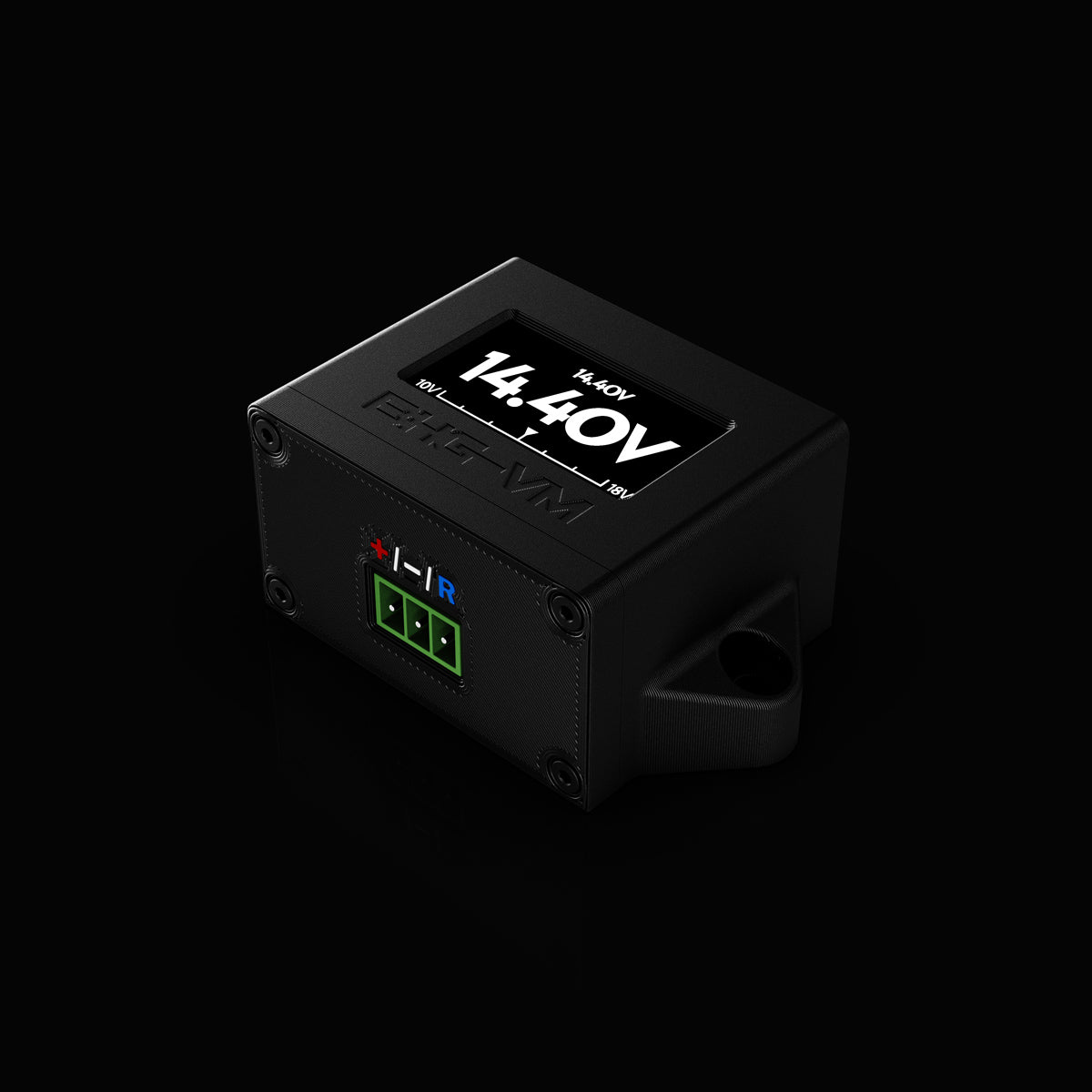

BHG-VM - Voltmeter

BHG-VM - Voltmeter

$49.99 USD
$49.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

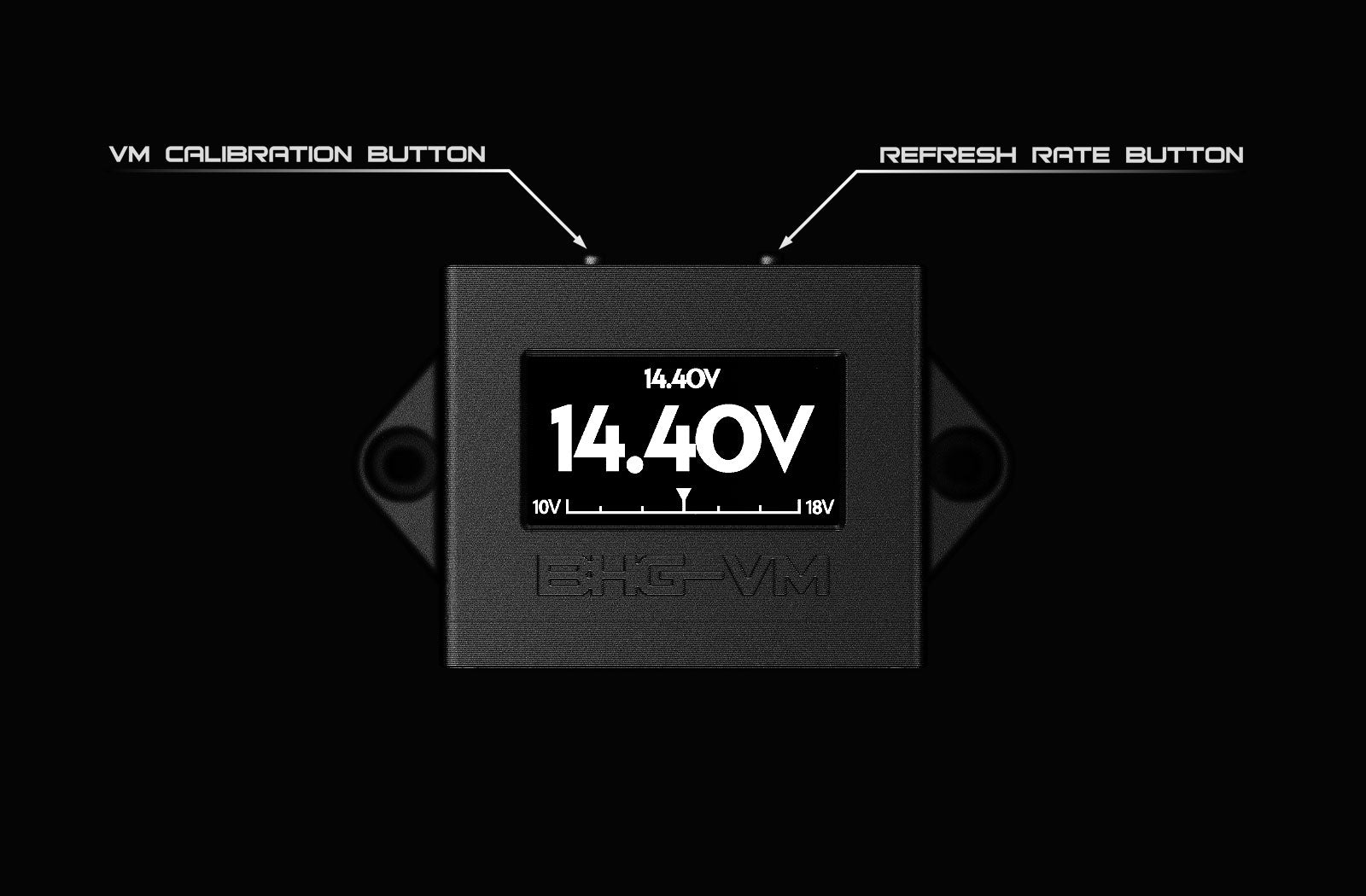

Fast and precise voltmeter with adjustable refresh rate, manual calibration, and the lowest voltage drop monitoring capability.

 Package contains:
1x BHG-VM Voltmeter
1x 3.81 MM 3-pin connector

Instruction Manual: Download


View full details
Voltmeter Range:  0 - 18 V DC
Response Time: 15, 25, 50, 75, 150 M/s
Lowest Voltage Monitor: ✓
Voltmeter Calibration: ✓
Display:  1.3" OLED Monochrome
Wiring:  B+, GND, Remote - 3.81 mm Connector
Case Material: PETG Plastic
Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"

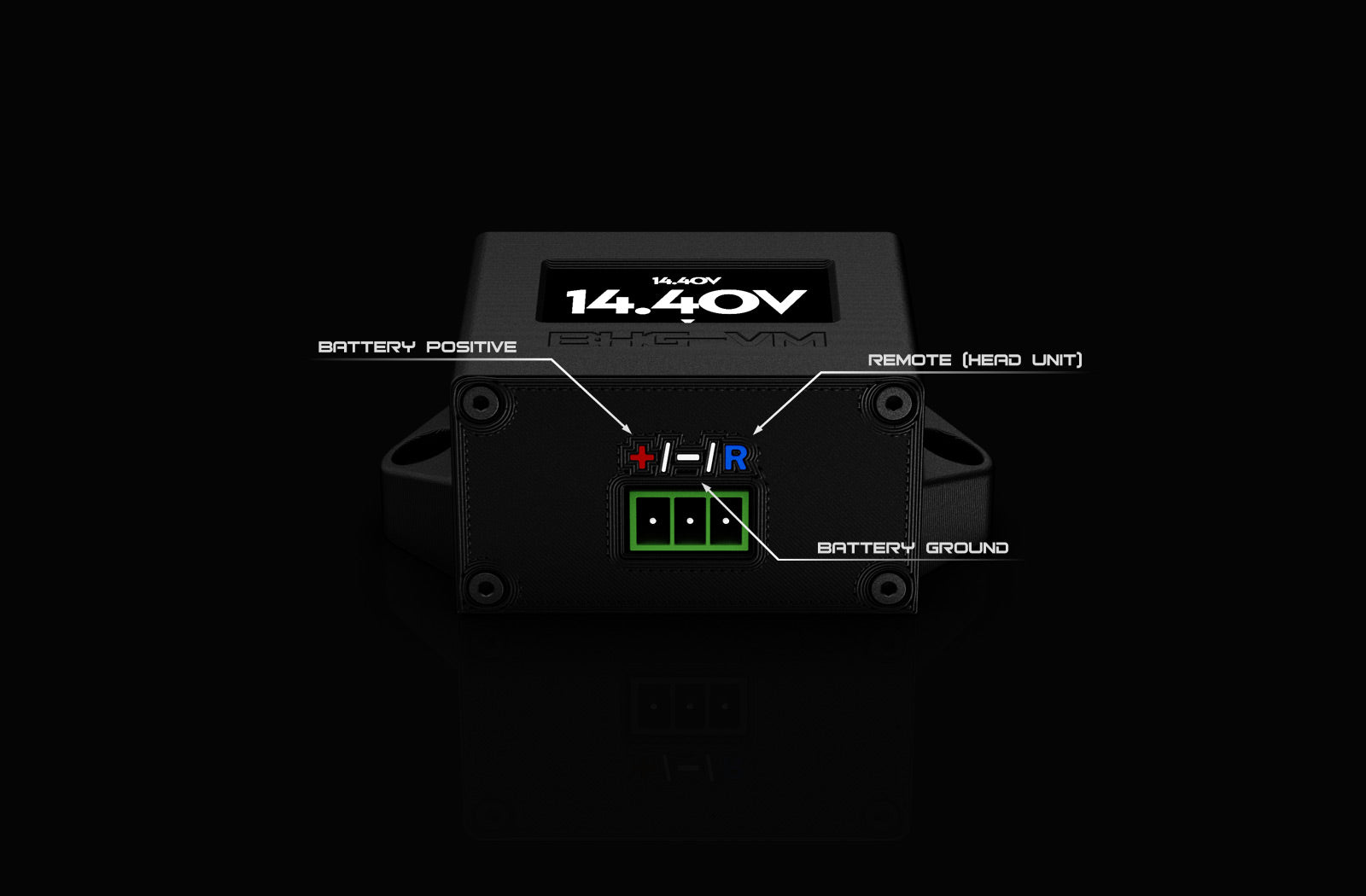

Wiring:

+Battery Positive
- Battery Ground
R - Remote (Head Unit)

Specifications:

Voltmeter Range:  0 - 18 V DC
Response Time: 15, 25, 50, 75, 150 M/s
Lowest Voltage Monitor: ✓
Voltmeter Calibration: ✓
Display:  1.3" OLED Monochrome
Wiring:  B+, GND, Remote - 3.81 mm Connector
Case Material: PETG Plastic
Dimensions: Height: 1.6" - Width: 2.75" - Depth: 1"



Wiring:

+Battery Positive
- Battery Ground
R - Remote (Head Unit)
